ReGen LIVE Polystream 3G SDI Encoder
A broadcast-grade encoder for the SDI world: professional camera chains, OB vans, and studio racks where the signal arrives over coax. It takes a 3G-SDI feed, encodes up to 1080p60 in H.265 or H.264, pushes four simultaneous outputs, and loops the untouched SDI signal through to the rest of the chain — silent, passively cooled, and remotely manageable through RemoteGenius wherever the rack lives.
- 1080p60 capture over a single coax run, with SDI loop-through to downstream gear
- Program stream plus 1080 / 720 / 576 substreams — four outputs at once
- RTMP(S), SRT, HLS, RTSP, UDP unicast / multicast transports
- Embedded SDI audio or 3.5 mm analog input
- Remote management via RemoteGenius API (molfarMQ protocol)
- Resolution
- 1080p60
- Codec
- H.265 / H.264
- Concurrent Streams
- 4×
- Power
- < 5 W
In Detail

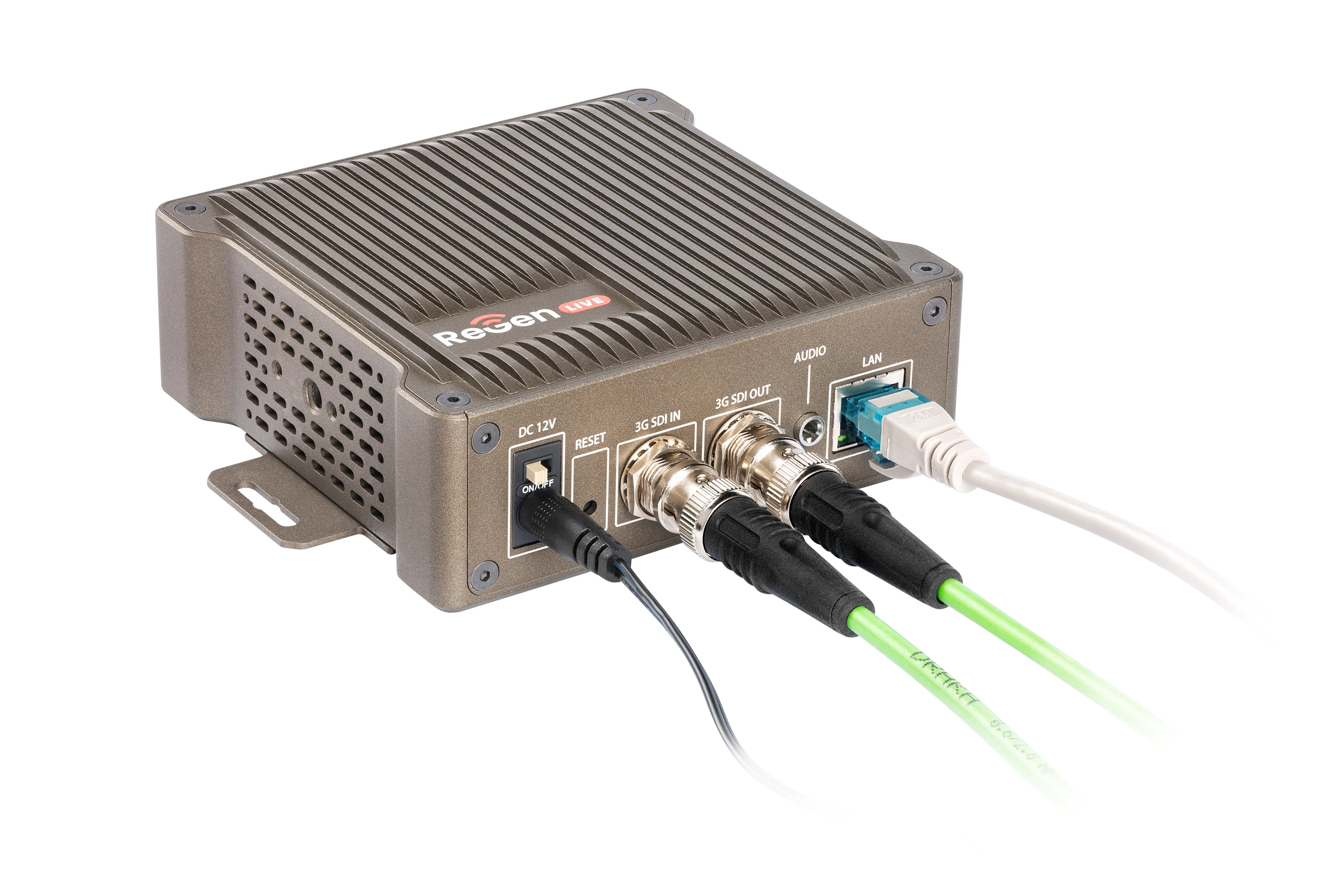

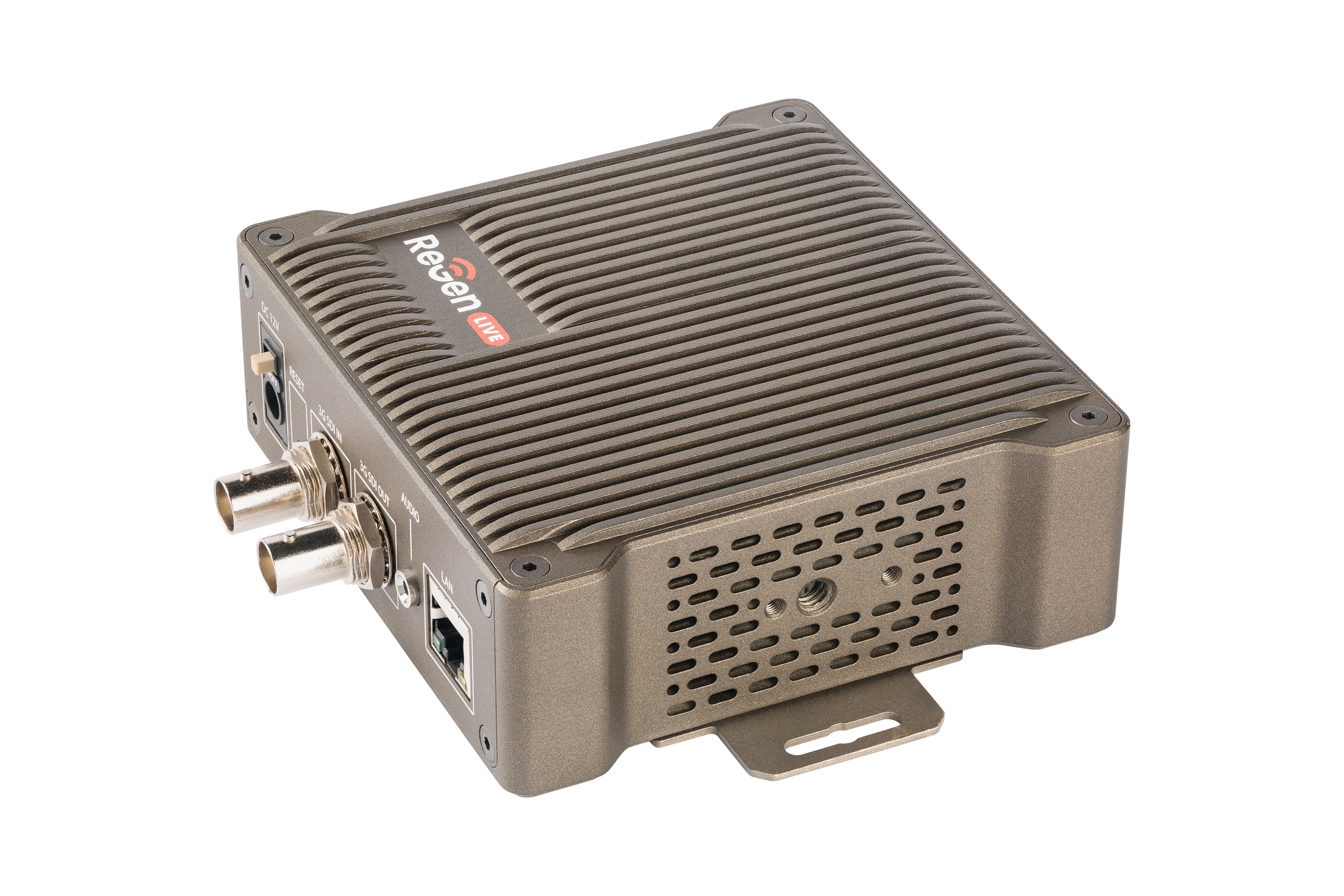

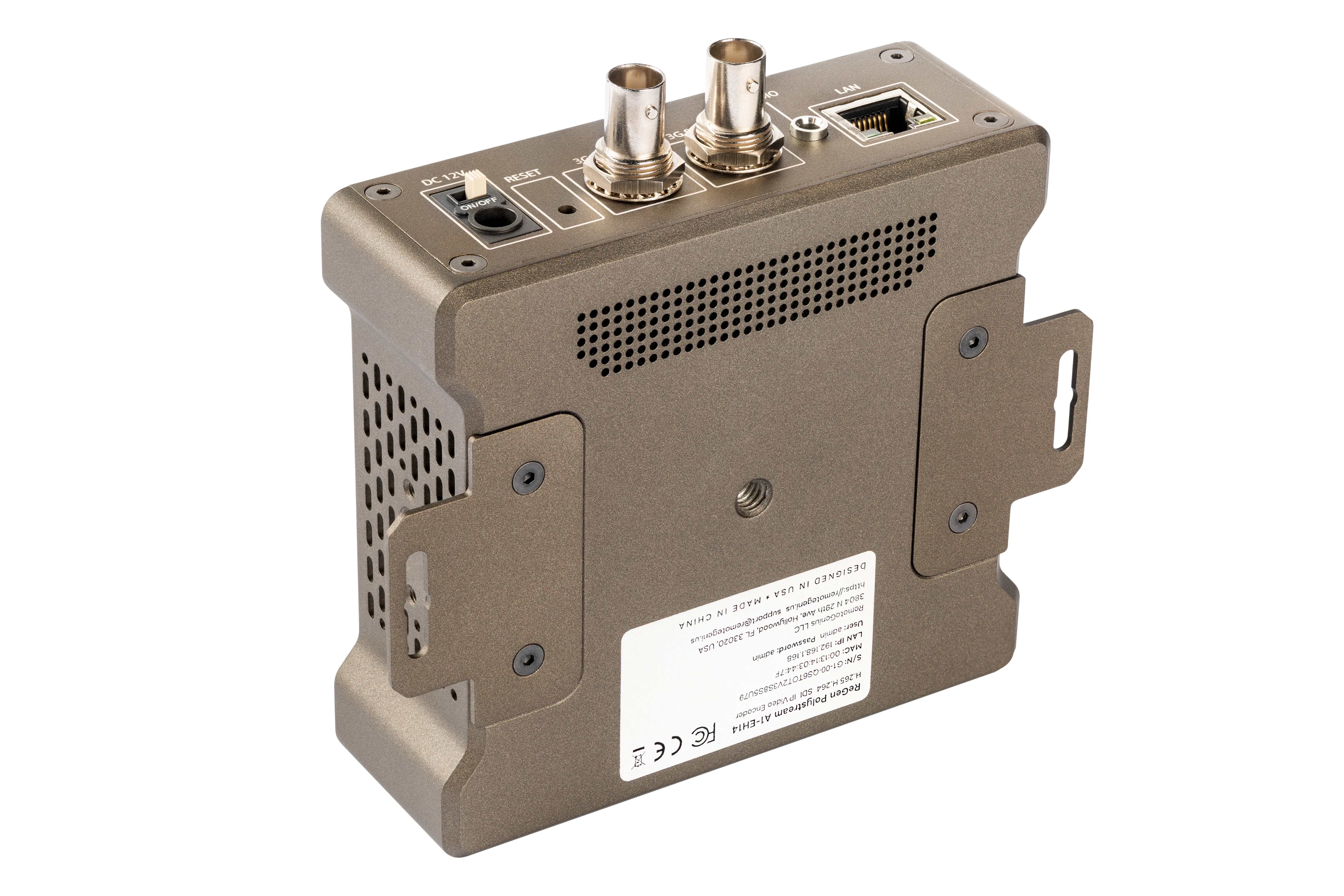

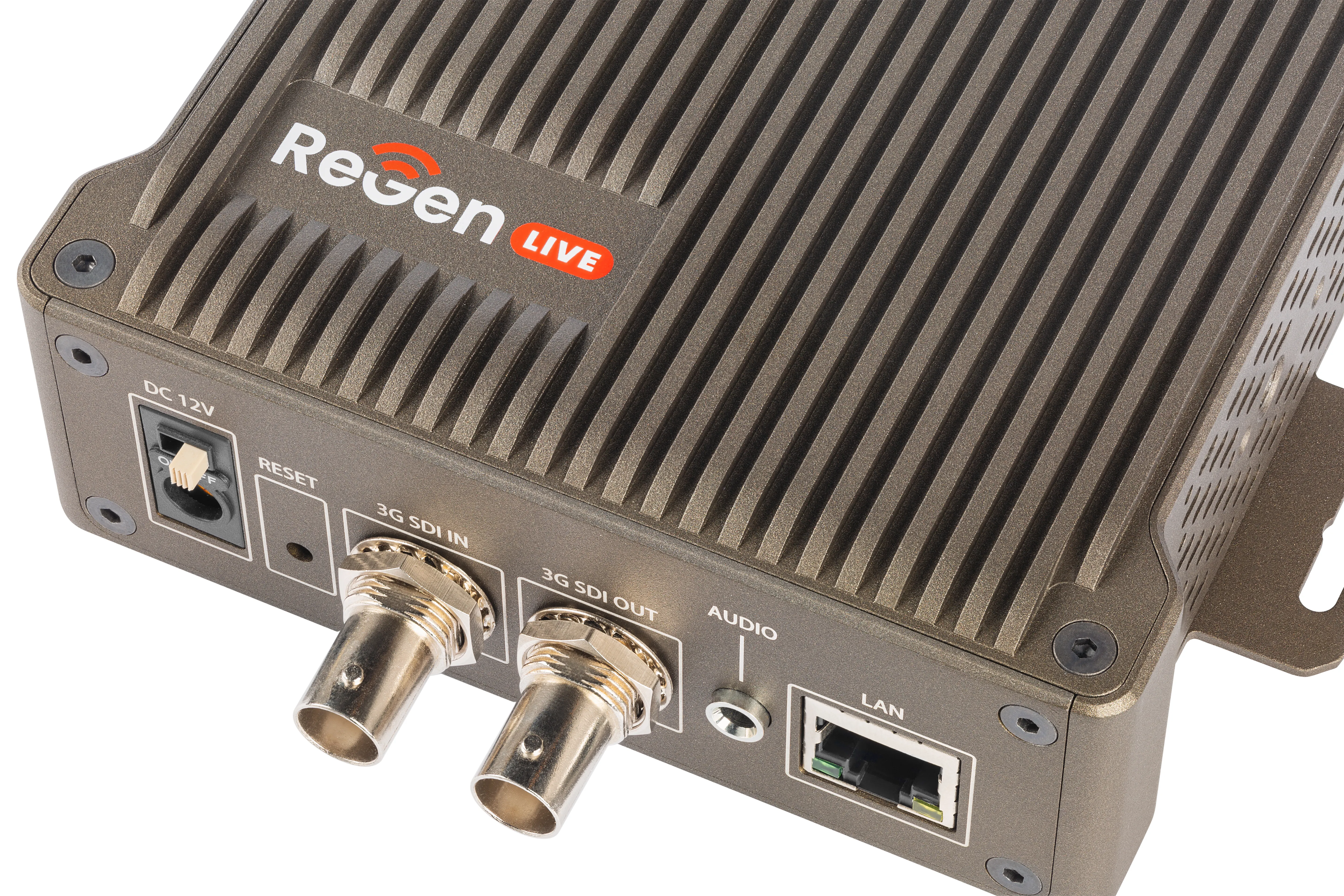

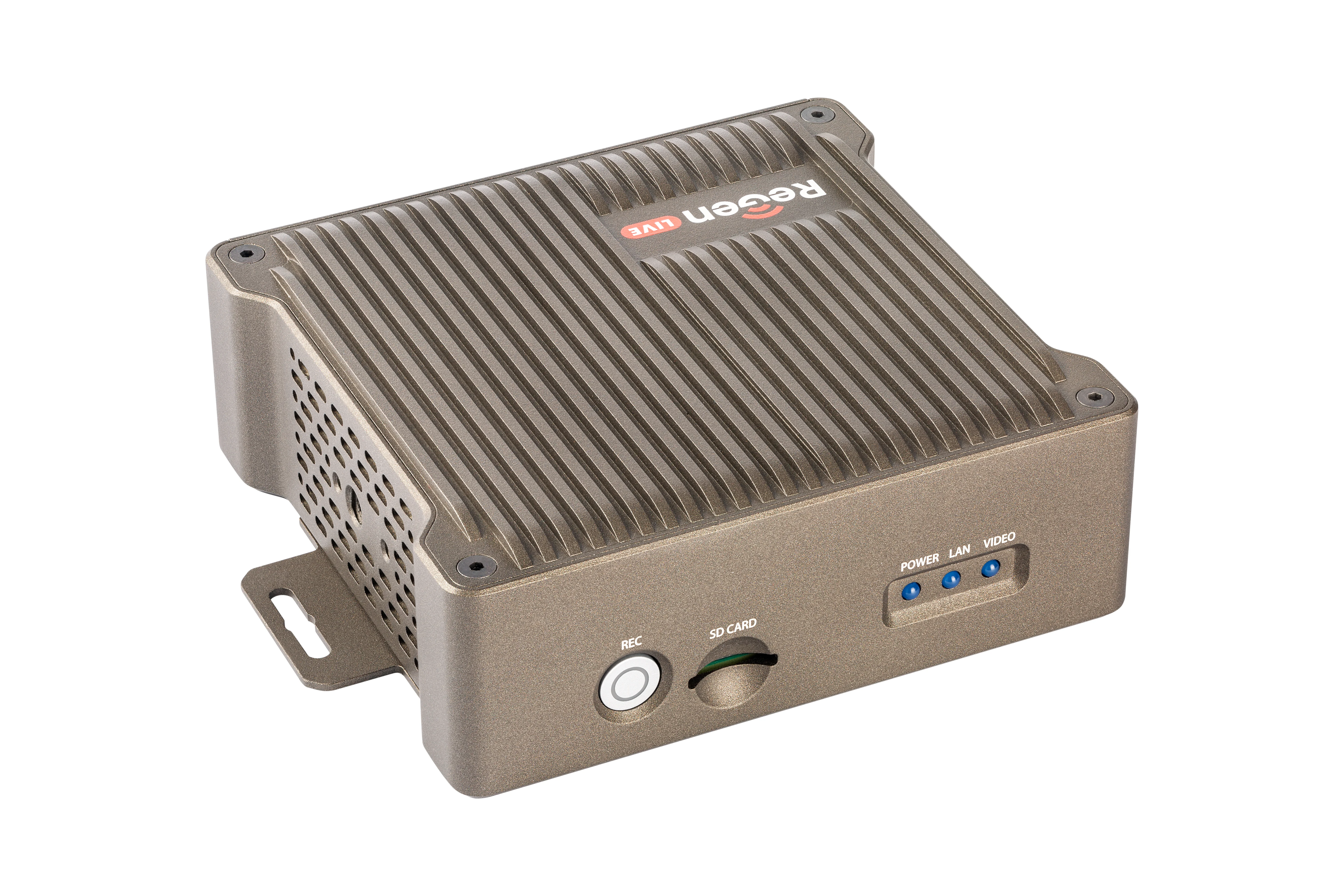

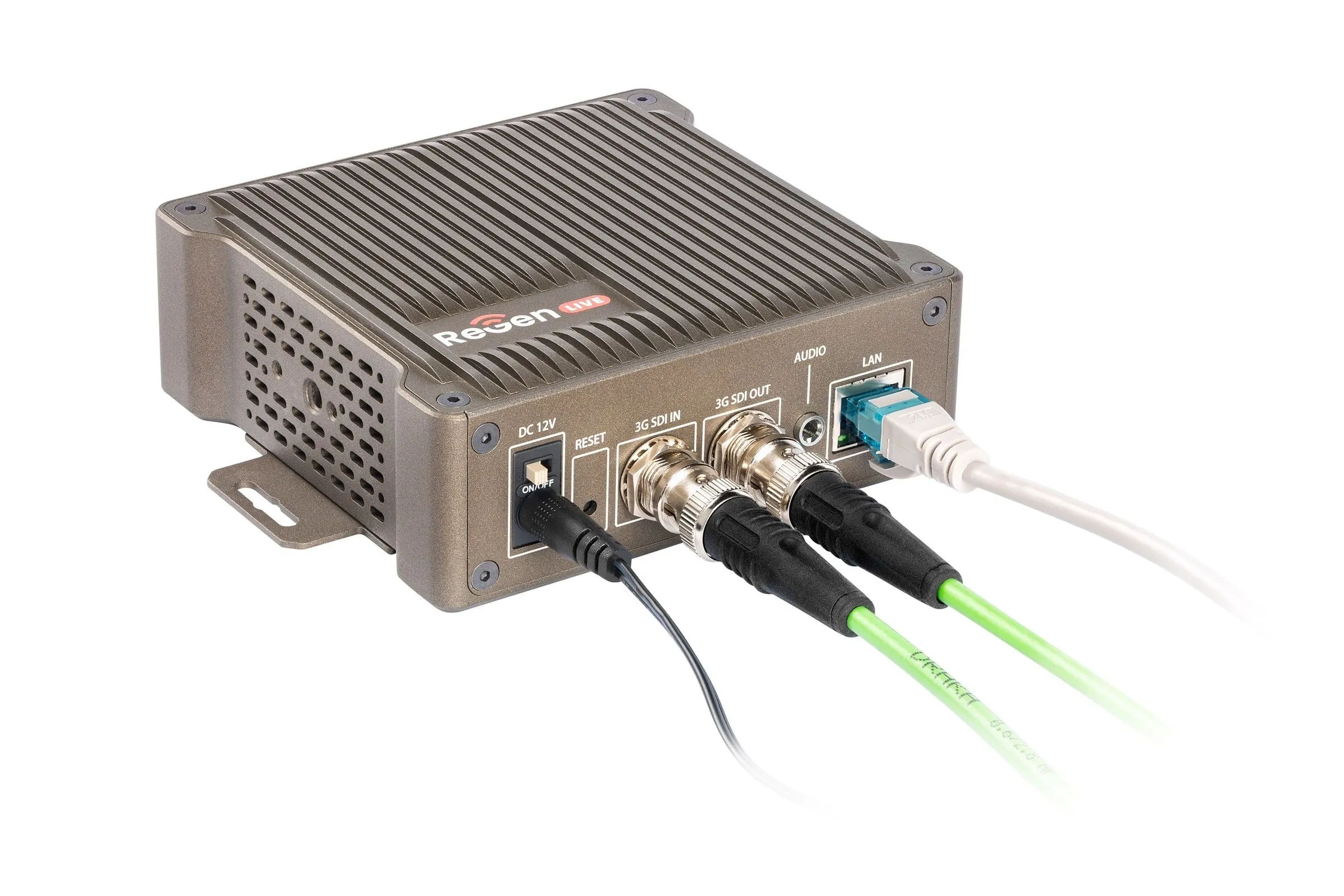

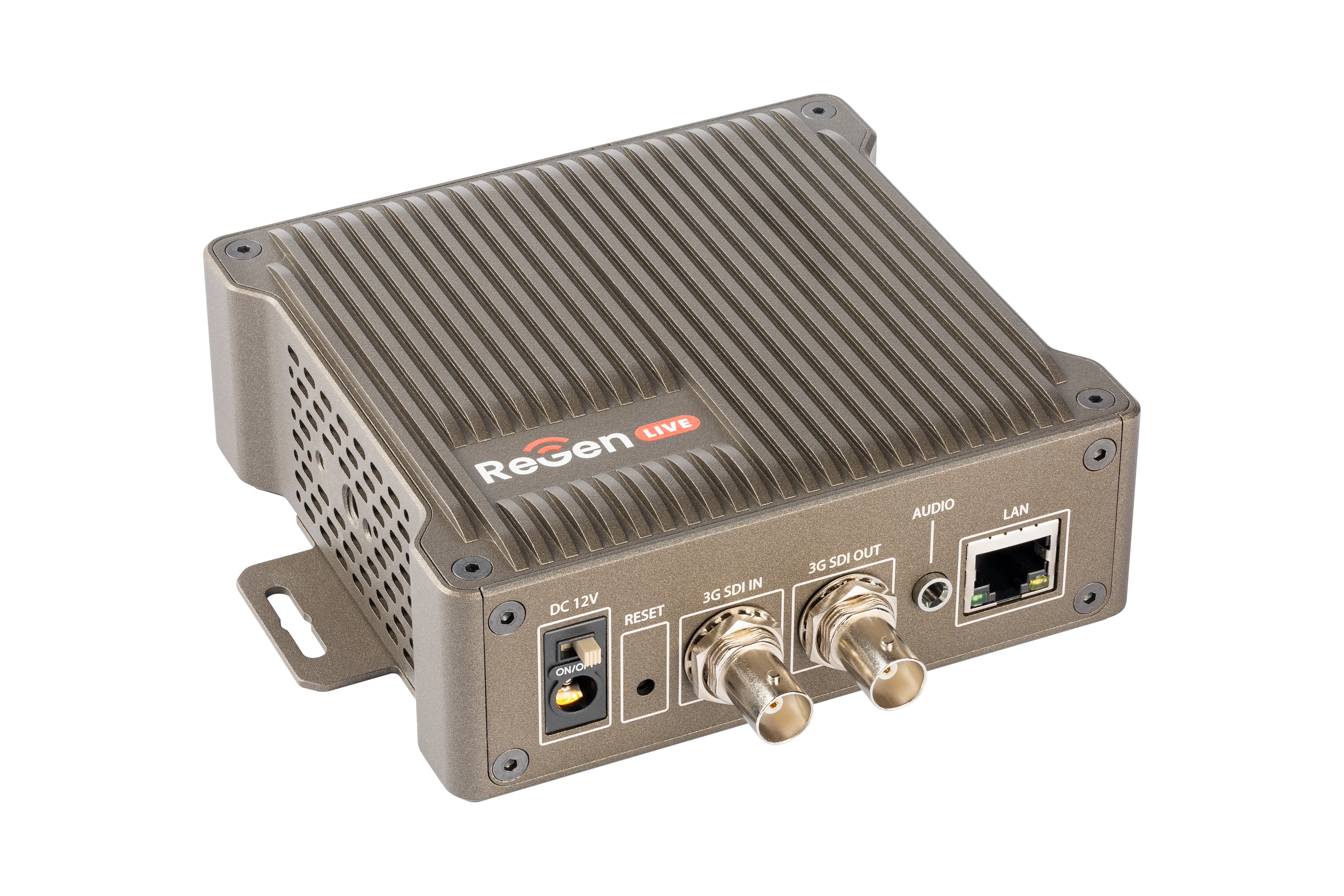

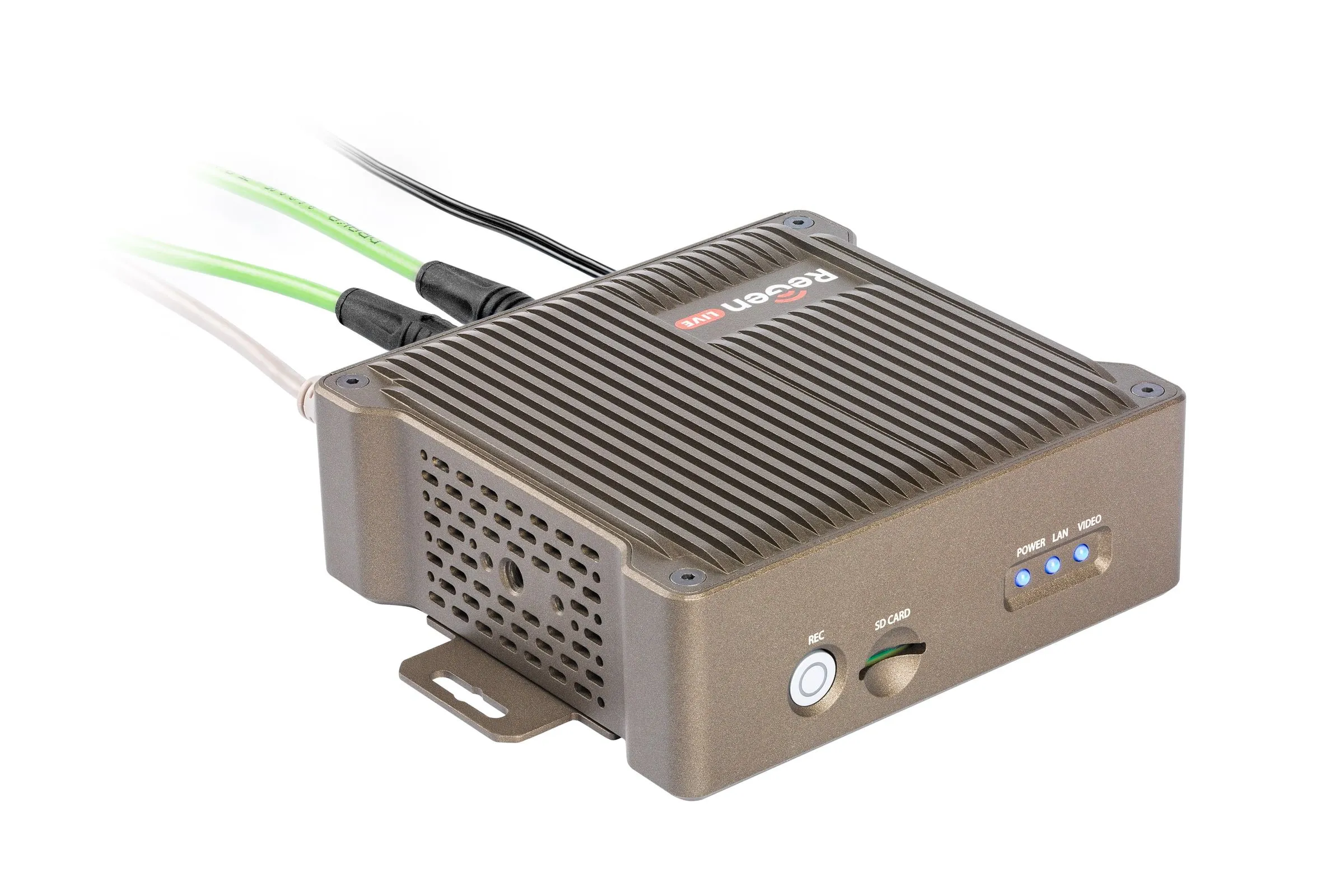

Locking BNC I/O on a milled aluminium body with fully passive cooling — no fan noise near open microphones. DIN-rail and rack-shelf mounting included for truck and machine-room installs.
Full Technical Specifications
| Video I/O | |
|---|---|
| Inputs | 1× 3G-SDI |
| Outputs | 3G-SDI loop output |
| Supported Resolutions | 1080p60/50, 1080i60/50, 720p60/50, 720×576i, 720×480i |
| Color Sampling | 4:2:0 |
| Bit Depth | 8 |
| Audio I/O | |
| Input | 1× SDI embedded, 1× 3.5 mm analog |
| Output | — |
| Compression | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / G.711A / G.711U |
| Audio Channels | 2 |
| Audio Sample Rate | 44.1 / 48 kHz |
| Bit Depth | 24-bit |
| Audio Bitrate | 32 / 48 / 64 / 96 / 128 / 160 / 192 / 384 kbps |
| Video Processing | |
| Compression | H.265, H.264 — Baseline / Main / High Profile, Level 4.2 |
| Supported Bitrate | 0.16 Mbps – 32 Mbps |
| Bitrate Control | CBR / VBR |
| Advanced | De-interlacing, image enhancement, noise reduction, sharpening |
| Video Transport Protocols | UTP, HTTP, RTSP, RTMP(S), HLS, FLV, UDP unicast / multicast |
| Streams | Main (up to 1080), substream 1 (up to 1080), substream 2 (up to 720), substream 3 (up to 576) |
| File Recording Types | — |
| File Recording Media | — |
| HDR Support | — |
| On-Screen Display (OSD) | |
| Images or Text | Up to 4 |
| Advanced | 1 text scroll |
| Protocol Support | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP |
| Remote Management | RemoteGenius API (molfarMQ protocol) |
| Interfaces | |
| Web UI | Yes |
| CGI | Yes |
| Network | |
| Ethernet | 1 Gbit |
| Wireless | — |
| USB | — |
| Internal Modems | — |
| External Modems | — |
| Antennas | — |
| Power | |

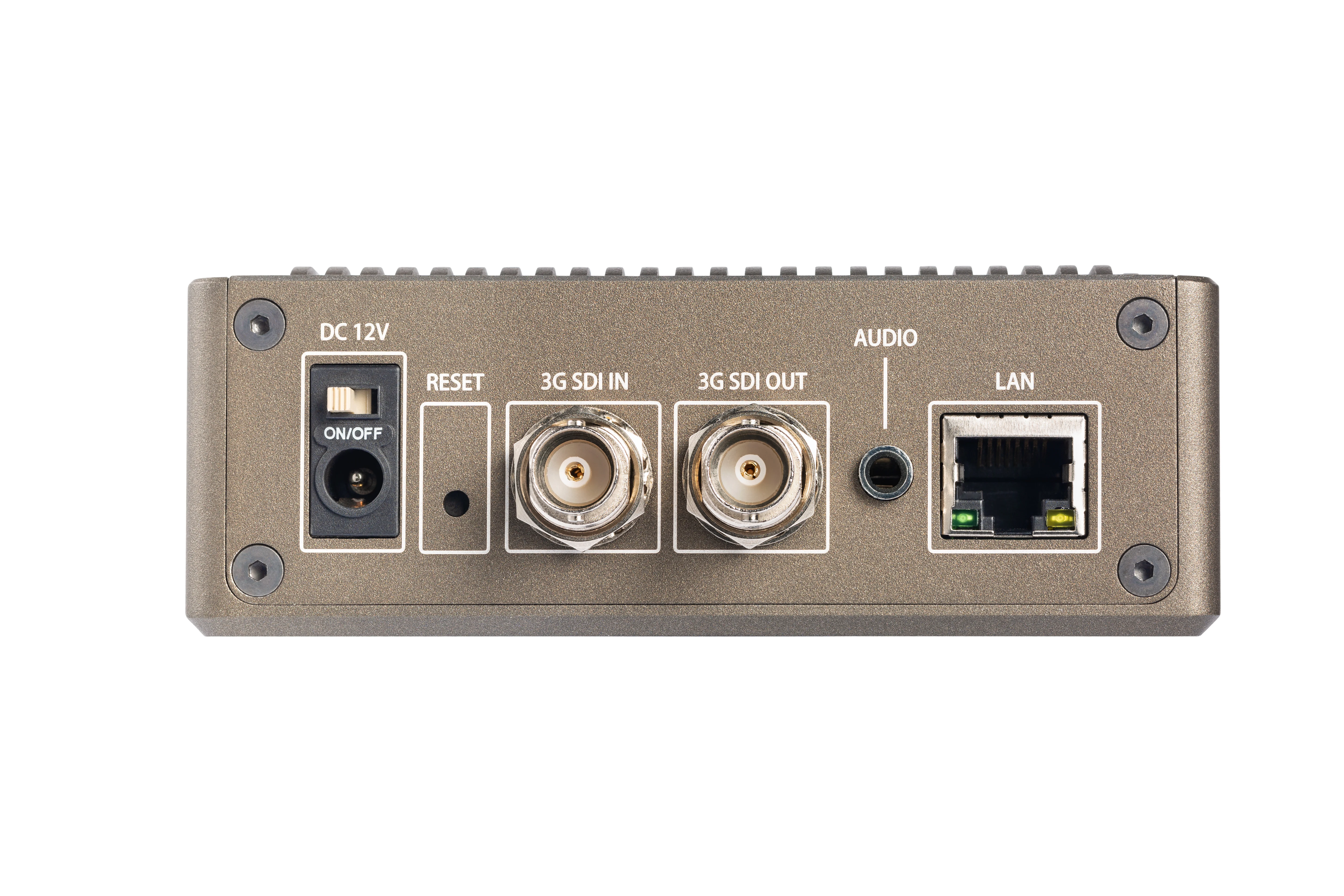

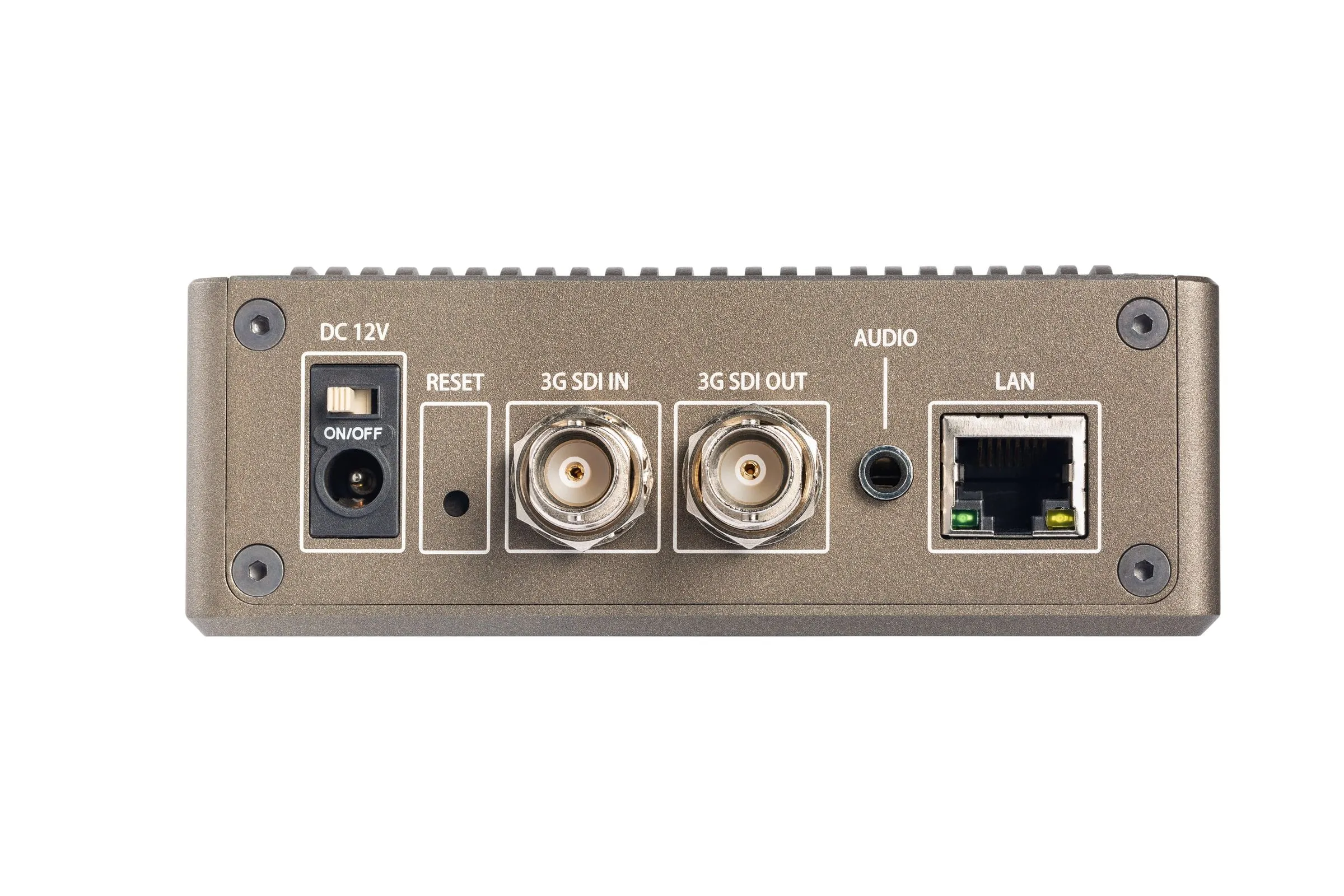

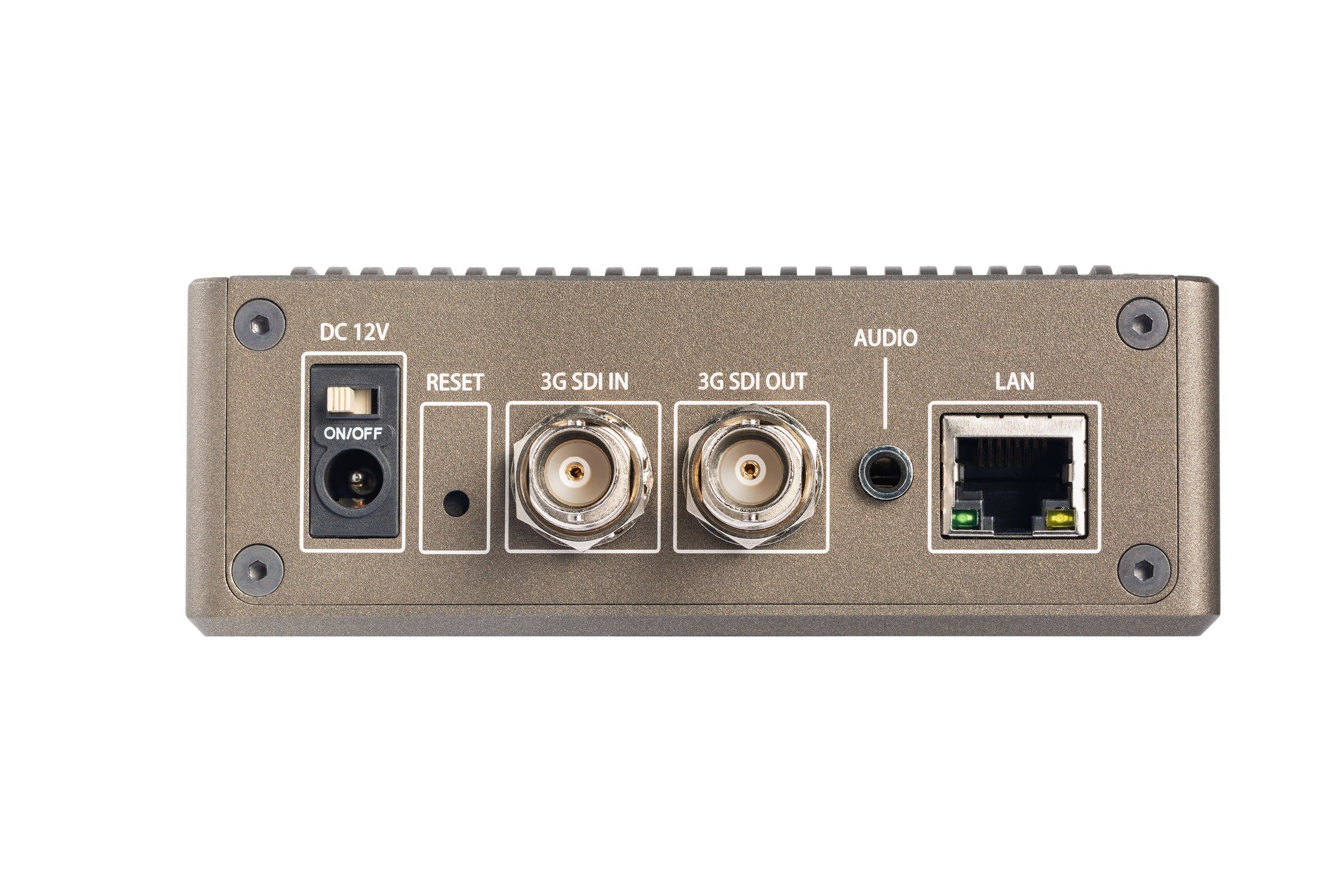

| Power Input | 5–12 V DC, 1 A |
| Internal Battery | — |
| Power Consumption | < 5 W |
| Physical Attributes | |
| Dimensions | 105 × 105 × 40 mm | 4.13″ × 4.13″ × 1.57″ |
| Weight | 385 g | 13.58 oz |

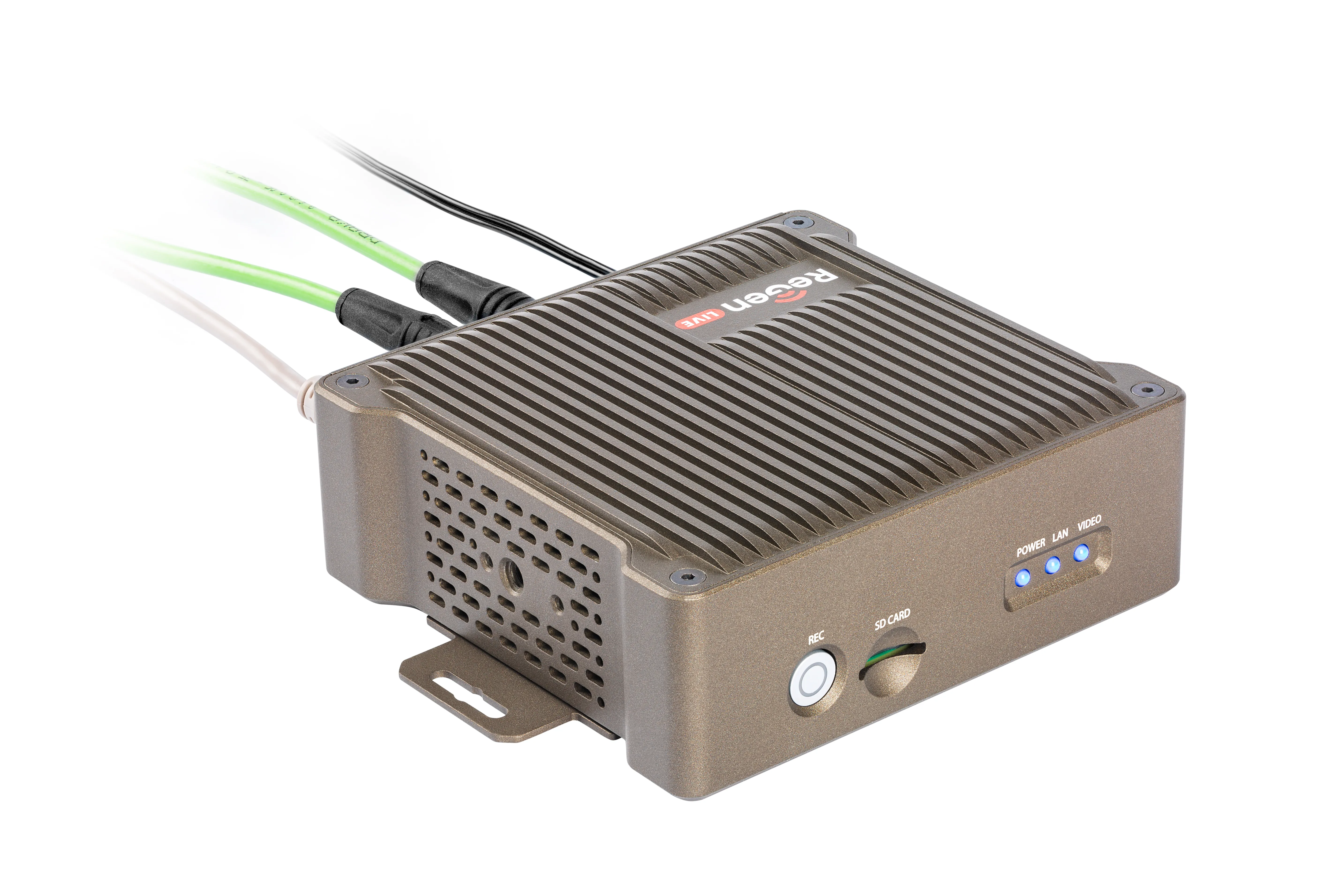

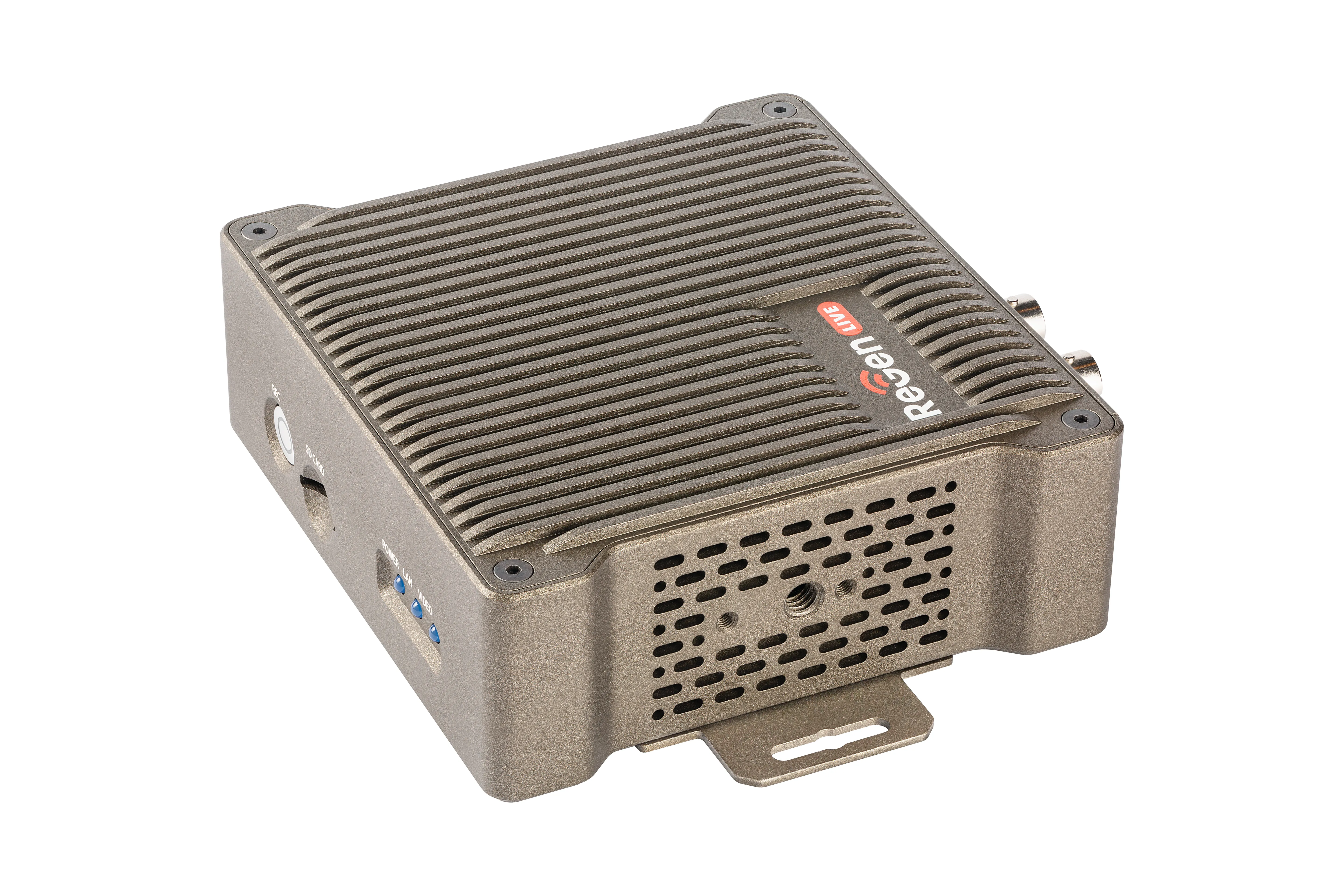

| Construction | Milled aluminium alloy |

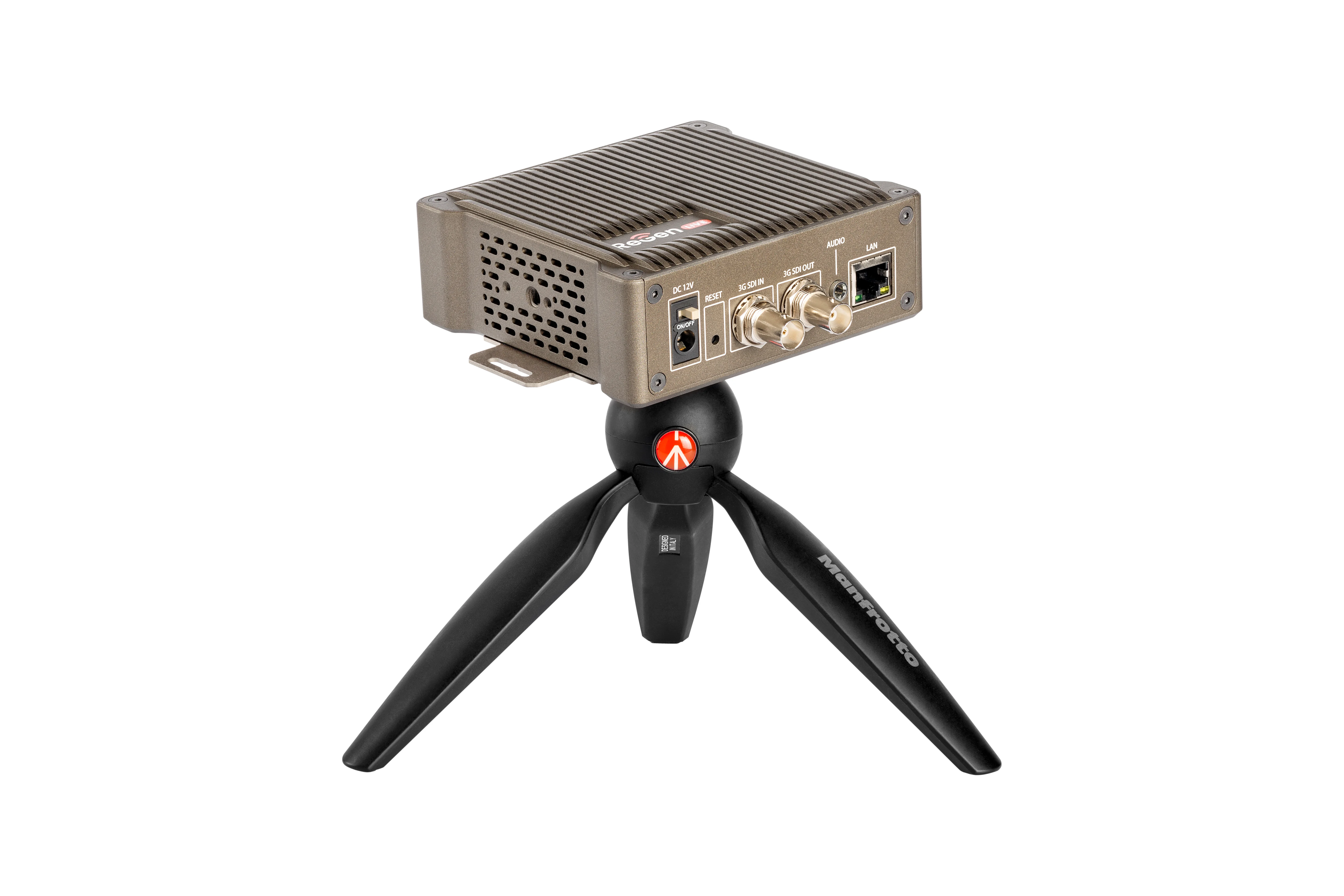

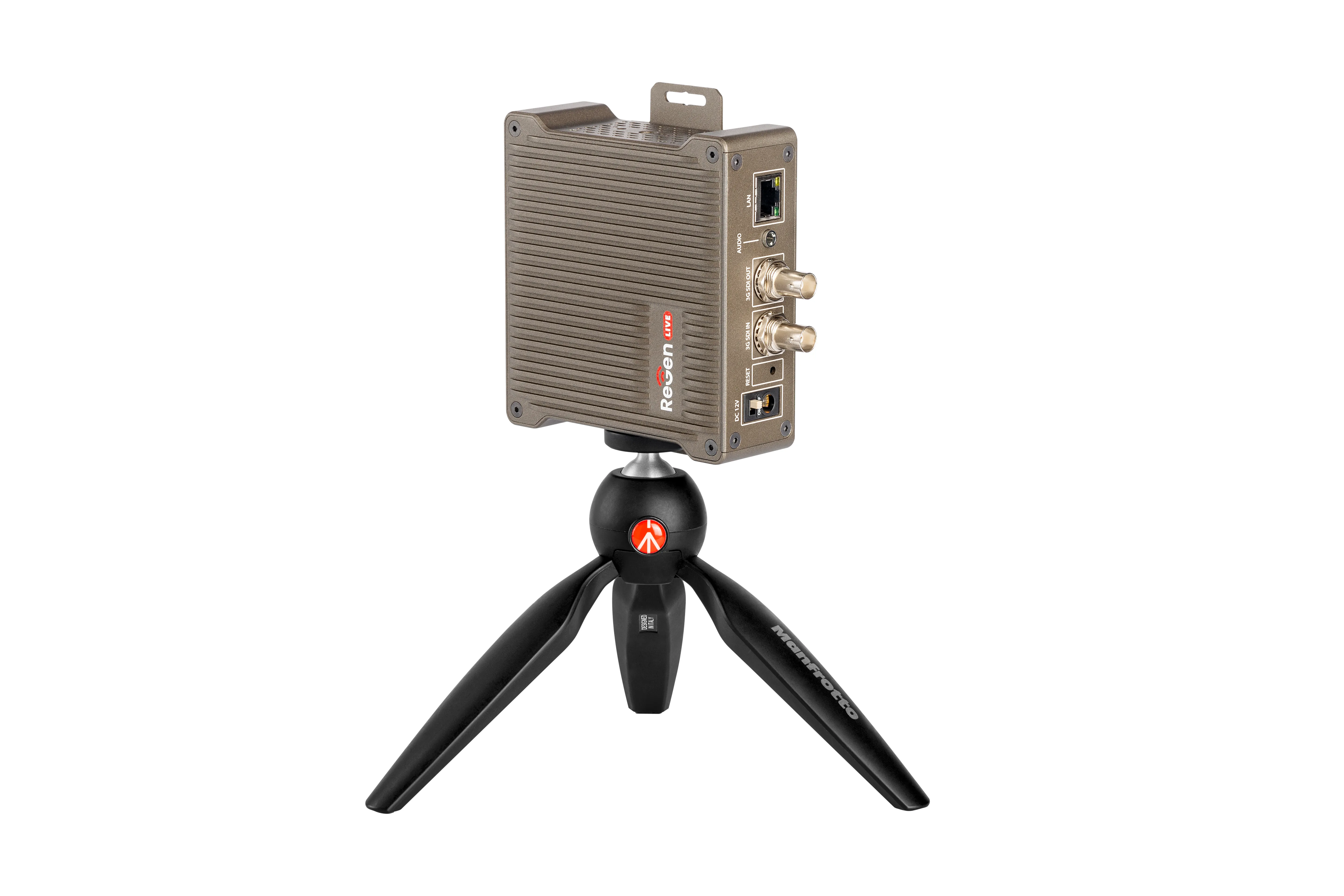

| Mounting Options | 3 threaded holes for ¼″-20 screws 4 threaded holes for 2 DIN-rail mounts 2 universal rack-shelf mounts (included) |
| Cooling | Passive |
| General | |
| Operating Temperature | 0–45 °C (operating), −20 to +80 °C (storage) |
| Humidity | — |
| IP Rating | — |
| Start-Up Time | ~10 s |
| Compliance | |
| FCC | Yes |
| CE | Yes |
Ready to Deploy ReGen LIVE 3G SDI?
Tell us how many SDI channels you run and where the encoders will sit — OB van, studio rack, or a remote venue — and we will come back with pricing, lead time, and integration support.
Feeding from consumer or prosumer HDMI sources instead? See the ReGen LIVE HDMI encoder.
